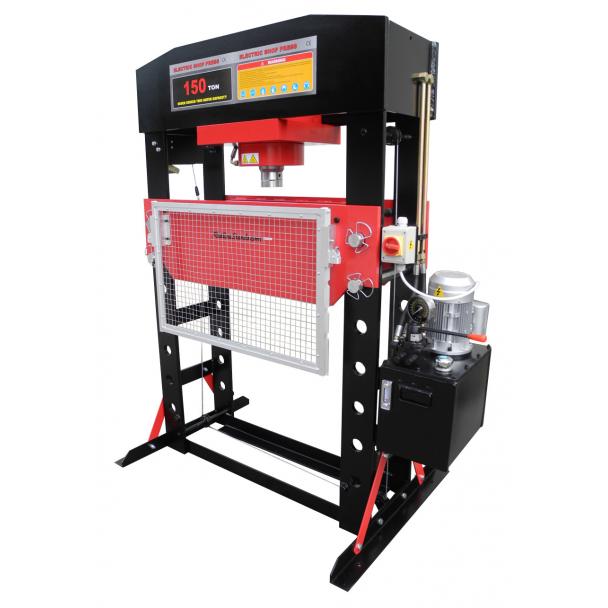

Redline 150 Ton Electric Hydraulic Shop Press

Model: RE150T-E

Optional Accessories


Pin Press Kit


10ft. Electrical Cord


Press Plates
Brand
Type
Truck carriers charge extra to deliver to locations that have no forklift on site, and also for any location not on commercially zoned property. This includes businesses run from your home property, and next door to it. These are not Redline’s fees and sadly they are unavoidable. All truck carriers charge them.

$15,999.50

Description

This industrial Redline 150 ton hydraulic shop press is an electric over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a powerful electric hydraulic pump for heavy duty pressing, a ram cylinder that can move left and right, and a crank style carriage winch for easy adjustment of the middle carriage. A tonnage gauge is mounted on top of the hydraulic fluid tank to see how much pressure you are currently using. For safety reasons a shop press guard is included so whatever you're working on can't fly out under pressure. Order your new 300,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS
• CE Certified
• 150 ton capacity
• Power coated finish
• 7 carriage pin holes
• Interchangeable handle
• Press plates not included
• Welded braces inside carriage for support
• Time to fully extend cylinder: 1 minute 55 seconds
• Time to fully retract cylinder: 1 minute 12 seconds
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Electric powered hydraulic pump for heavy duty pressing
• Safety grate can be latched into place in multiple increments

IMPORTANT NOTES
• Pump does not come pre-filled with hydraulic fluid
• 7-8 gallons of #32 hydraulic fluid will be needed to operate the pump
• Long and/or thin extension cords are not recommended as amp loss could damage the motor

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

PRICE INCREASE EXPLANATION
• Due to recent 25% tariffs, this product has experienced a substantial price increase beyond the control of Redline Engineering LLC.  Please accept our apologies.

Show more

Specs

• Valve handle: 12.5" L
• Cylinder stroke: 13-3/4"
• Main frame: 5-3/4" x 7/8"
• Grid guard: 38" x 24-1/2"
• Inside frame width: 14-1/8"
• Inside frame length: 39-3/8"
• Relief pressure: 105-115%
• Press head diameter: 3-7/8"
• Cylinder rod diameter: 4-5/8"
• Max pump pressure: 8377 PSI
• Carriage pin diameter: 2-3/16"
• Ram fully extends in 142 seconds
• Pump VFR - .914 gallons per minute
• Floor to bottom of press head: 56"
• Cylinder left-right movement: 12.5"
• Piston retraction time: 84 seconds
• Pressure gauge accurate to +/- 2.5%
• 180mm / 7.086” piston inside cylinder
• Cylinder piston/bore diameter: 7.08661"
• Carriage opening space: 25-3/4" L x 13" W
• Overall dims: 72" L x 39-1/4" W x 82-1/2" H
• Overall carriage dims: 51" L x 18" W x 15" H
• Press head bottom to carriage top max distance: 34.5"

ELECTRIC MOTOR
• 60 Hz
• 110 V
• 1700 RPM
• 19.12 AMP
• 2 Hp electric motor

Downloads

• Download the manual pdf HERE

Shipping

• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Ships 2,821 lbs. at 89" L x 57" W x 27" H
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $500 maximum. If shipping exceeds this amount a surcharge may be needed
