Redline 200 Ton Electric Hydraulic Shop Press

Model: RE200T-E

Optional Accessories


Pin Press Kit


10ft. Electrical Cord
Brand
Type
Truck carriers charge extra to deliver to locations that have no forklift on site, and also for any location not on commercially zoned property. This includes businesses run from your home property, and next door to it. These are not Redline’s fees and sadly they are unavoidable. All truck carriers charge them.

$19,999.50

Description

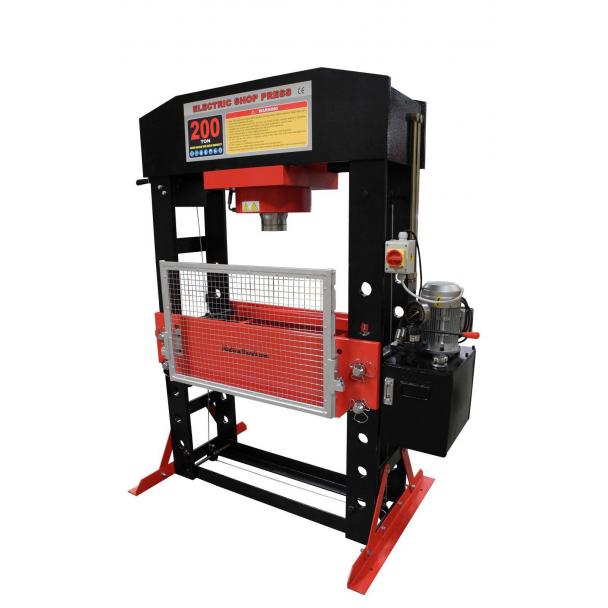

This industrial Redline 200 ton hydraulic shop press is an electric over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a powerful electric hydraulic pump for heavy duty pressing, a ram cylinder that can move left and right, and a crank style carriage winch for easy adjustment of the middle carriage. A tonnage gauge is mounted on top of the hydraulic fluid tank to see how much pressure you are currently using. For safety reasons a shop press guard is included so whatever you're working on can't fly out under pressure. Order your new 400,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS
• CE Certified
• 200 ton capacity
• Powder coat finish
• 7 carriage pin holes
• Interchangeable handle
• Press plates not included or offered
• Welded braces inside carriage for support
• Time to fully extend cylinder: 2 minutes 45 seconds
• Time to fully retract cylinder: 1 minute 40 seconds
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Electric powered hydraulic pump for heavy duty pressing
• Safety grate can be latched into place in multiple increments
IMPORTANT NOTES
• Pump does not come pre-filled with hydraulic fluid
• 7-8 gallons of #32 hydraulic fluid will be needed to operate the pump
• Long and/or thin extension cords are not recommended as amp loss could damage the motor



Show more

Specs

• Main frame: 6" x 1"
• Valve handle: 12.5" L
• Cylinder stroke: 14"
• Grid guard: 39" x 25"
• Inside frame length: 40"
• Press head diameter: 6"
• Carriage pin diameter: 2"
• Carriage weight: 512 lbs.

• Inside frame width: 17-1/8"
• Impulse rating: 20305.3 PSI
• Carriage opening: 23-1/2" x 14"
• Cylinder rod max extended: 17"
• Cylinder left-right movement: 13"
• Floor to bottom of press head: 56"
• Peak pressure rating: 10152.6 PSI
• Overall dims: 67" L x 39" W x 82" H
• Pump VFR - .914 gallons per minute
• Pressure gauge accurate to +/- 2.5%
• Carriage dims: 51" L x 19" W x 14" H
• Cylinder piston/bore diameter: 8.66142"
• Press head bottom to carriage top min distance: 4"
• Press head bottom to carriage top max distance: 36"

ELECTRIC MOTOR
• 60 Hz
• 110 V
• 1700 RPM
• 19.12 AMP
• 2 Hp electric motor



Downloads

• Download the manual pdf HERE

Shipping

• Residential delivery not possible
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Ships 3329 lbs. at 88" L x 56" W x 24" H
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $750 maximum. If shipping exceeds this amount a surcharge may be needed
